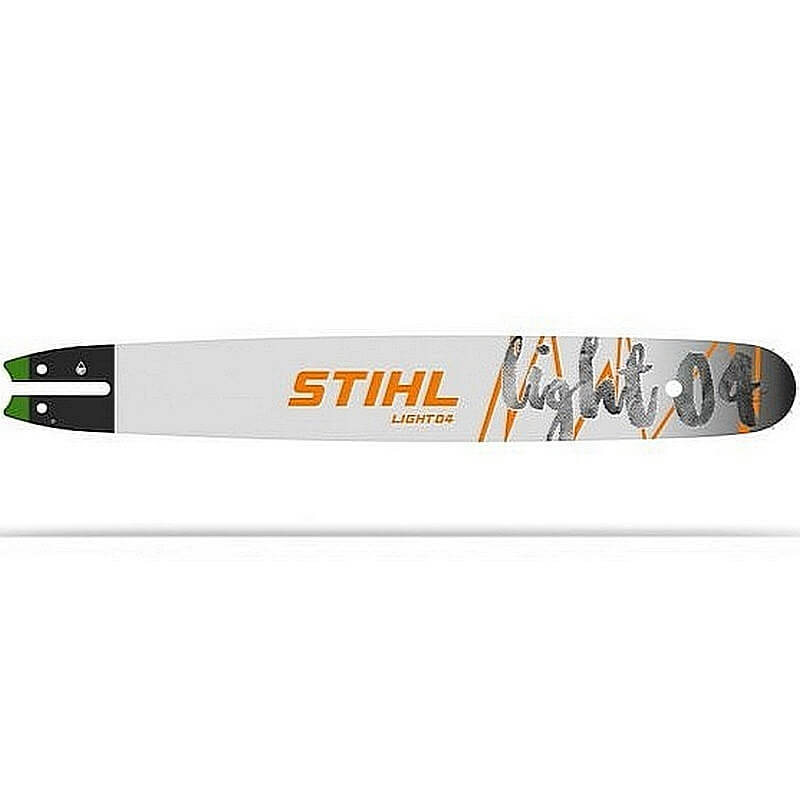

STIHL Light 04 Chainsaw Guide Bar 16″L | .325″P | .063″G

Name: STIHL Light 04 Chainsaw Guide Bar 16"L | .325"P | .063"G
SKU: 8224.679
Availability: InStock

$53.99

SKU: 8224.679 Categories: Chainsaws, Outdoor Power Equipment, Power Equipment

In stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

Compatible with STIHL models: MS 250 / MS 251 C-BE / MS 251 Wood Boss

The STIHL Light 04 Chainsaw Guide Bar is a specialized choice for anyone looking to improve the balance and handling of their equipment during long hours of property maintenance. This slim contour design significantly reduces weight by up to 20 percent compared to older solid bar models, moving the center of gravity closer to the user for much easier control. When navigating through thick brush or bucking firewood, the reduced mass at the nose helps maintain precision and lowers the physical effort needed to complete each cut. It provides a steady, stable platform that allows for a more natural flow during operation, ensuring that every task is finished with professional accuracy.

Key Features of STIHL Light 04 Chainsaw Guide Bar 16"L | .325"P | .063"G

Slim profile improves maneuverability and reduces the risk of the bar pinching in the cut

Weight-reduced construction shifts the center of gravity back toward the powerhead for better balance

Induction-hardened rails provide a steady path for the chain and resist uneven wear during use

Four-rivet sprocket nose ensures a secure and stable tip for demanding cutting applications

Symmetrical shape allows for regular flipping to ensure even wear on both sides of the bar

Ematic lubrication system ensures oil reaches the drive links to minimize friction heat

Specialized coating protects the steel from corrosion and environmental wear during storage

Narrower body helps prevent the saw from binding when working in dense timber

Additional Information

Brand: STIHL

Product Type: Chainsaw Guide Bar

Model: 3005 000 4713

Product Use: Guiding the cutting chain during wood-cutting tasks

Size: 16 inch

Material: Chrome-molybdenum steel

Height: .325 inch (Pitch)

Length: 16 inch

Width: 0.063 inch (Gauge)

Regularly cleaning the oil inlet hole and the bar groove with a small putty knife or a dedicated groove cleaner is the best way to prevent the chain from running dry and overheating. Many operators fail to notice that using a 0.063″ gauge chain on a 0.050″ bar or vice versa can lead to immediate rail damage, so always verify your chain matches these specific measurements before starting the saw. When finishing work for the day, check the rails for any small metal burrs and gently file them down to keep cuts straight and true. Matching this 16-inch setup with a high-quality yellow-label chain will provide the most aggressive and efficient cutting performance for hardwood logs.
