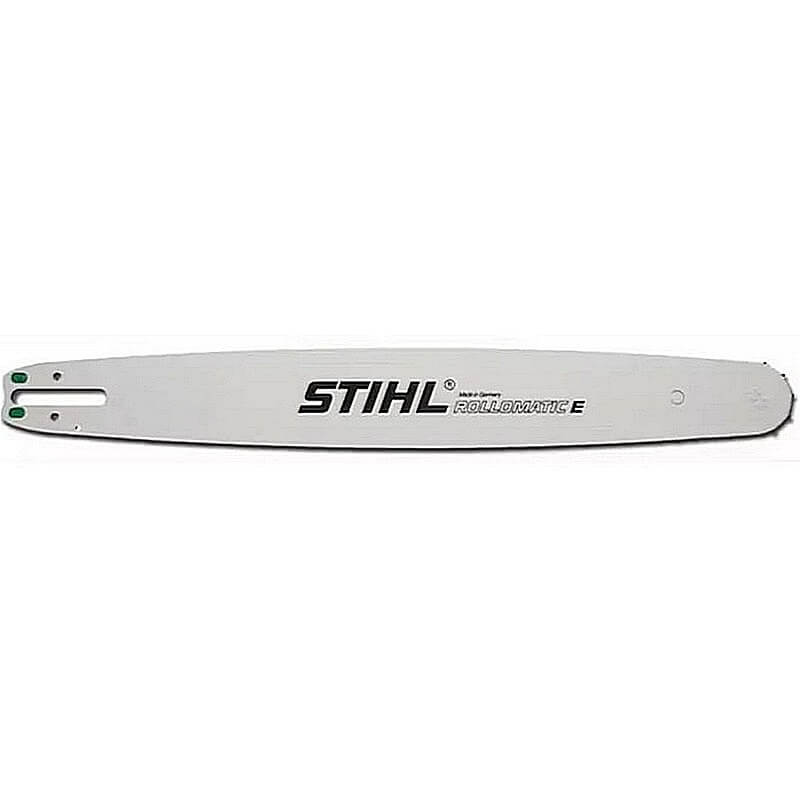

STIHL Rollomatic E Chainsaw Guide Bar 18″L | .325″P | .063″G (68 DL)

Name: STIHL Rollomatic E Chainsaw Guide Bar 18"L | .325"P | .063"G (68 DL)
SKU: 8275.877
Availability: InStock

$56.84

SKU: 8275.877 Categories: Chainsaws, Outdoor Power Equipment, Power Equipment

In stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

Compatible with STIHL models: MS 271 Farm Boss / MS 291

The STIHL Rollomatic E Chainsaw Guide Bar provides a balanced and sturdy foundation for mid-sized saws used in frequent property maintenance or storm cleanup. This component features a three-part construction where the plates are electrically welded together, and the middle plate is hollowed out to save weight without sacrificing the structural stiffness needed for straight cuts. When you are bucking firewood or felling small to medium trees, the integrated sprocket in the nose carries the chain smoothly around the tip, reducing friction and ensuring the saw’s energy is directed efficiently into the wood. It offers a stable, low-vibration feel that helps you maintain control throughout a full day of demanding yard work.

Key Features of STIHL Rollomatic E Chainsaw Guide Bar 18"L | .325"P | .063"G (68 DL)

Three-part welded construction offers a lightweight yet rigid frame for consistent cutting performance

Induction-hardened rails resist wear and ensure the chain tracks smoothly over long-term use

Small radius sprocket nose helps manage chain speed and reduces the risk of kickback

Symmetrical design allows the bar to be flipped regularly to ensure even wear on both top and bottom rails

Ematic lubrication system features a sloping seal that directs oil into the chain groove to prevent waste

Sealed nose bearing keeps dirt and wood chips out of the internal moving parts to prevent premature failure

Precision-machined grooves provide a smooth glide for the chain during intense woodcutting

Additional Information

Brand: STIHL

Product Type: Chainsaw Guide Bar

Model: 3005 008 4717

Product Use: Guiding the cutting chain during medium-duty woodcutting

Size: 18 inch (Drive Links: 68)

Material: Chrome-molybdenum steel

Height: 325 inch (Pitch)

Length: 18 inch

Width: .0.063 inch (Gauge)

Regularly cleaning the oil inlet hole and the bar groove with a small putty knife or a dedicated groove cleaner is the best way to prevent the chain from running dry and overheating. Many operators fail to notice when the rails begin to “mushroom” or flare out, so using a flat file to square up the edges of the bar will keep the chain from leaning and cutting at an angle. When finishing work for the day, check the rails for any small metal burrs and gently file them down to keep your cuts square and true. This specific bar uses the 3005 mounting pattern, which is common on smaller to mid-sized saws, so ensure your chain tension is checked frequently during the first few cuts of the day.
