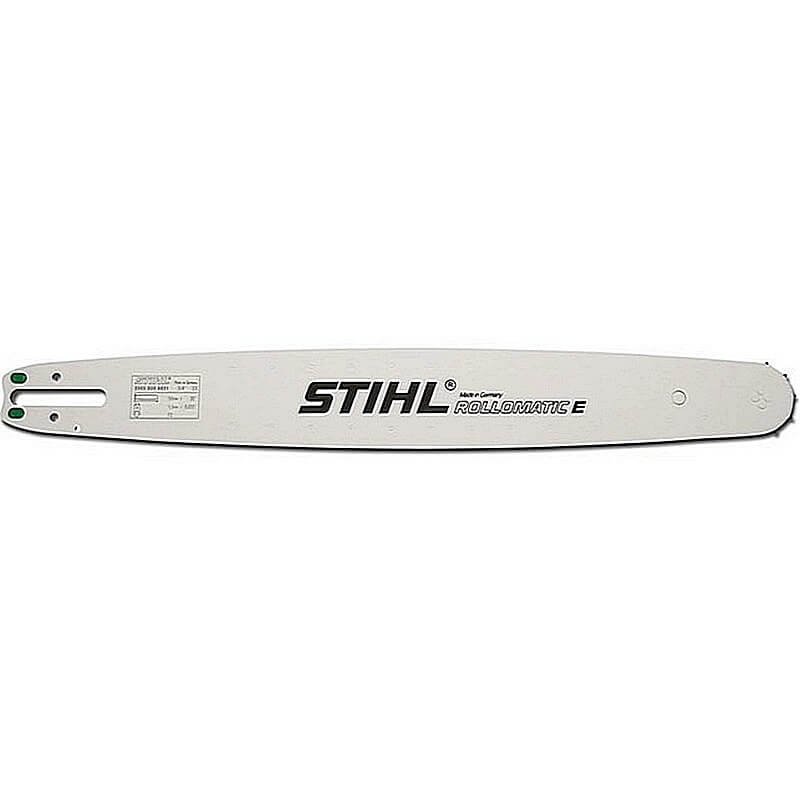

STIHL Rollomatic E Chainsaw Guide Bar 18″L | .325″P | .063″G (74 DL)

Name: STIHL Rollomatic E Chainsaw Guide Bar 18"L | .325"P | .063"G (74 DL)
SKU: 8224.642
Availability: InStock

$56.84

SKU: 8224.642 Categories: Chainsaws, Outdoor Power Equipment, Power Equipment

In stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

Compatible with STIHL models: MS 261 C-M / MS 271 Farm Boss / MS 291

The STIHL Rollomatic E Chainsaw Guide Bar is an ideal addition to a medium-power saw for users who need a balanced and steady feel during frequent firewood cutting or storm cleanup. This bar features a three-part construction where the middle section is extensively hollowed out to save weight, while the outer plates remain solid to provide necessary rigidity. While working through thick logs, the sprocket nose helps guide the chain with minimal friction, ensuring that more of the saw’s power is directed into the wood rather than lost to heat. It offers a level of stability that makes it easier to keep your cuts square and true, even when the timber gets tough or the day gets long.

Key Features of STIHL Rollomatic E Chainsaw Guide Bar 18"L | .325"P | .063"G (74 DL)

Induction-hardened rails provide a steady path for the chain and resist uneven wear over time

Sealed sprocket nose bearing prevents sawdust and dirt from clogging the internal moving parts

Symmetrical shape allows for regular flipping to ensure both sides of the bar wear at the same rate

Ematic lubrication system ensures oil reaches the drive links to minimize friction heat on this 18-inch span

Three-part welded construction offers a stiff structure for bucking and felling without extra weight

Large radius sprocket nose helps manage the chain speed and reduces the risk of kickback

Precision-machined grooves provide a smooth glide for the chain at high operating speeds

Additional Information

Brand: STIHL

Product Type: Chainsaw Guide Bar

Model: 3003 008 6817

Product Use: Guiding the cutting chain during wood-cutting tasks

Size: 18 inch (Drive Links: 74)

Material: Chrome-molybdenum steel

Height: .325 inch (Pitch)

Length: 18 inch

Width: 0.063 inch (Gauge)

Regularly cleaning the oil inlet hole and the bar groove with a small putty knife or a dedicated groove cleaner is the best way to prevent the chain from running dry and overheating. Many operators fail to notice when the rails begin to “mushroom” or flare out, so using a flat file to square up the edges of the bar will keep your chain from leaning and cutting at an angle. When finishing work for the day, check the rails for any small metal burrs and gently file them down to keep cuts straight and true. Matching this 0.063″ gauge bar with the correct Rapid Super or Rapid Micro chain will ensure the drive links sit deeply enough in the groove to prevent jumping.
