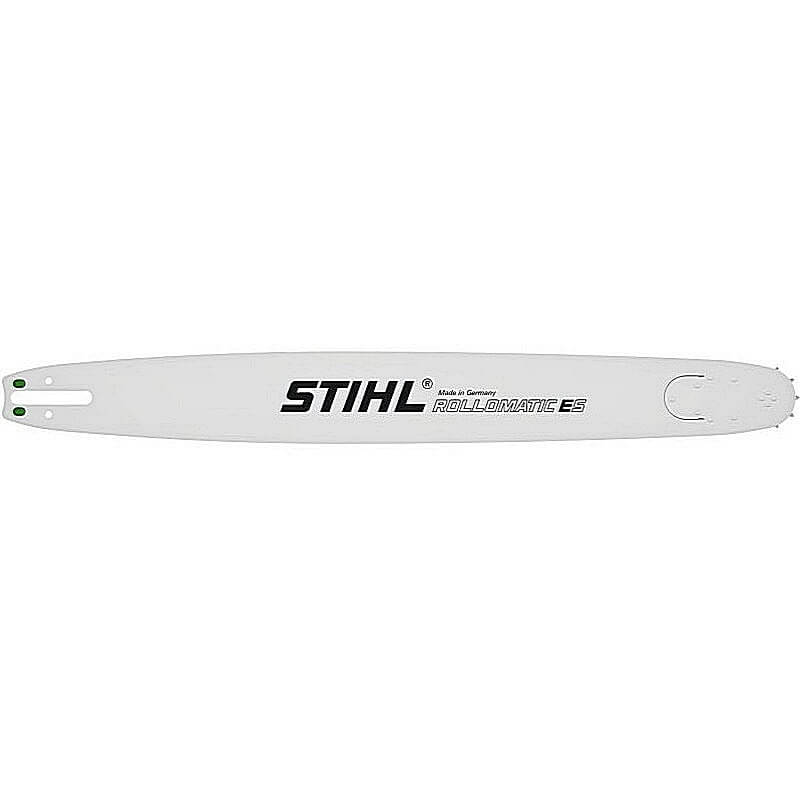

STIHL Rollomatic ES Chainsaw Guide Bar 20″L | 3/8”P | .063″G

Name: STIHL Rollomatic ES Chainsaw Guide Bar 20"L | 3/8”P | .063"G
SKU: 30039421
Availability: OutOfStock

$88.74

SKU: 30039421 Categories: Chainsaws, Outdoor Power Equipment, Power Equipment

Out of stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

Compatible with STIHL models: MS 291 / MS 311 / MS 362 C-M / MS 391 / MS 400 C-M / MS 462 C-M / MS 500i / MS 661 RC-M MAGNUM / MS 881

The STIHL Rollomatic ES Chainsaw Guide Bar is a heavy-duty component built to handle the most demanding felling and bucking tasks with ease. Machined from a single block of solid, wear-resistant steel, this bar provides the extreme rigidity needed when running high-performance saws through dense hardwoods. You will find that the solid construction significantly reduces the risk of the bar flexing or bowing under pressure, which is vital for maintaining a straight cut in wide-diameter logs. It offers a substantial, anchored feel that translates into confidence and control during intense forestry work.

Key Features of STIHL Rollomatic ES Chainsaw Guide Bar 20"L | 3/8”P | .063"G

Solid steel body provides maximum stiffness for professional-grade, high-torque chain saws

Replaceable sprocket nose assembly allows for quick maintenance if the tip wears out or sustains damage

Induction-hardened rails provide a steady path for the chain and resist uneven wear over time

Large radius sprocket nose helps manage the force of the cut and reduces the potential for kickback

Ematic lubrication system ensures oil reaches the drive links to minimize friction heat across the 20-inch span

Symmetrical shape allows for regular flipping to ensure both sides of the bar wear at the same rate

Precision-machined grooves provide a smooth glide for the chain at high operating speeds

Additional Information

Brand: STIHL

Product Type: Chainsaw Guide Bar

Model: 3003 000 9421

Product Use: Guiding the cutting chain during heavy-duty wood-cutting tasks

Size: 20 inch

Material: Solid chrome-molybdenum steel

Height: 3/8 inch (Pitch)

Length: 20 inch

Width: 0.063 inch (Gauge)

Regularly cleaning the oil inlet hole and the bar groove with a small putty knife or a dedicated groove cleaner is the best way to prevent the chain from running dry and overheating. Many operators overlook the mounting bolts on the replaceable sprocket nose, so keeping those secure will prevent unnecessary vibration and potential hardware failure. When finishing work for the day, check the rails for any small metal burrs and gently file them down to keep cuts straight and true. Rotating the bar every time the chain is sharpened will help the rails wear evenly and extend the overall life of the equipment.
