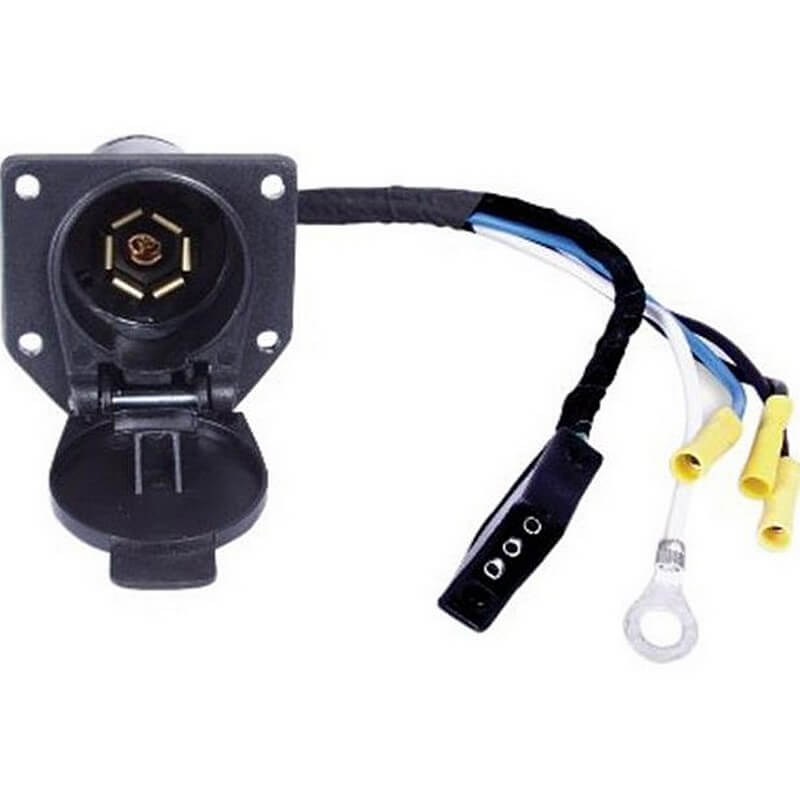

Uriah 4-Way Flat to 7-Way Blade Trailer Electrical System Adapter

Name: Uriah 4-Way Flat to 7-Way Blade Trailer Electrical System Adapter
SKU: 125174
Availability: InStock

$21.84

SKU: 125174 Categories: Automotive, Farm Equipment Parts, Farm Supplies, Trailer Lighting, Vehicle Trailer Electrical-Lights

In stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

The Uriah 4-Way Flat to 7-Way Blade Trailer Electrical System Adapter is a versatile wiring solution designed for vehicles equipped with a basic 4-way flat plug that need to tow trailers with a 7-way RV-style blade connector. This adapter allows you to bridge the two different systems easily, and it includes additional wire leads for auxiliary functions. These extra wires enable you to connect essential features that a 4-way plug does not support, such as electric trailer brakes, a 12V power supply for a battery, and reverse lights. It is an ideal upgrade for SUV and truck owners who are moving up to larger campers or car haulers.

Key Features of Uriah 4-Way Flat to 7-Way Blade Trailer Electrical System Adapter

Adapts a vehicle-side 4-way flat plug to a 7-way RV-style blade socket

Heavy-duty molded construction provides durability and resists road vibration

Includes additional wire leads for electric brakes, 12V power, and reverse lights

Spring-loaded dust cover protects the 7-way socket terminals when not in use

High-conductivity brass terminals ensure a steady flow of power to the trailer

Pre-wired 4-way flat connector allows for a quick primary connection to the vehicle

Flexible wire loom protects the auxiliary leads from abrasion and the elements

Integrated mounting bracket holes allow for a secure attachment to the vehicle bumper or hitch

Additional Information

Brand: Uriah Products

Product Type: Trailer Wiring Adapter

Model:

Product Use: Converting 4-Way Flat to 7-Way RV-Style Connections

Size: 4-Way Flat to 7-Way Blade

Material: Molded Plastic, Brass, and Copper Wire

Height: 3 inches

Length: 10 inch

Width: 3-1/2 inch

When installing this adapter, the additional wires must be manually connected to your vehicle’s wiring system to enable the full 7-way functionality. Typically, the blue wire is for electric brakes, the black wire is for 12V battery power, and the yellow or purple wire is for reverse lights. It is important to use a circuit tester to verify your vehicle’s wiring before making these connections to avoid blowing fuses. To maintain the life of the brass terminals, apply a small amount of dielectric grease periodically to prevent the green oxidation that can cause intermittent lighting failures.
