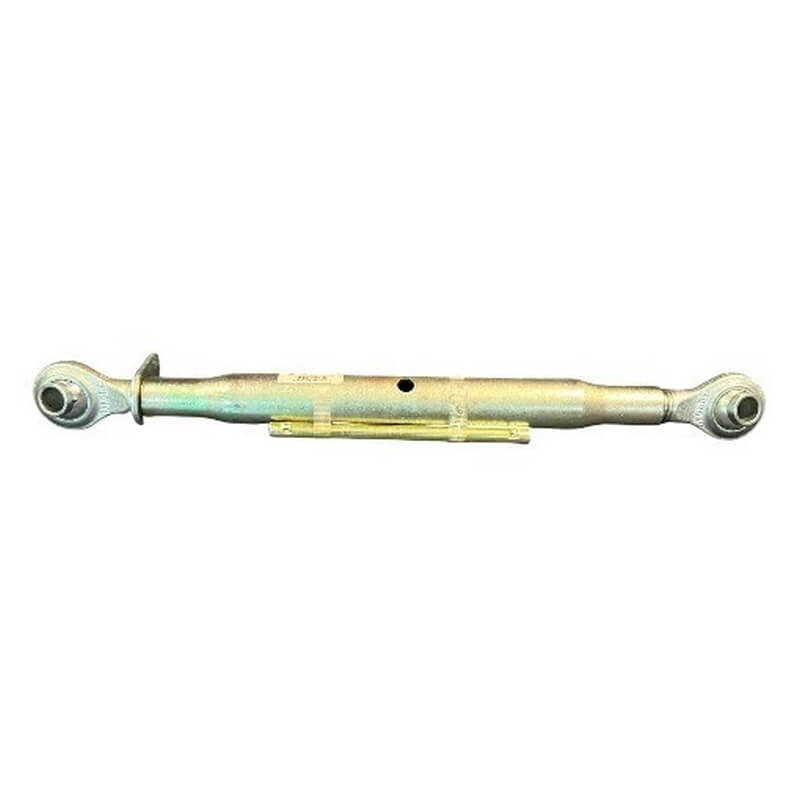

AgSmart Cat 1 Top Link Tube 16”

Name: AgSmart Cat 1 Top Link Tube 16”
SKU: 104568
Availability: InStock

$31.84

SKU: 104568 Categories: Farm Equipment Parts, Farm Supplies, Implement Parts

In stock

Free Store Pickup
Available for MO, AR, KS, OK addresses at checkout
Shipping

Ships to lower 48 (excl. CA) on eligible items.
Local Delivery
Order first; we’ll call you to schedule a time
Shop In-Store
Open Mon–Sat, 8 am–6 pm for all items.

AgSmart Cat 1 Top Link Tube is the essential component for maintaining the geometry and function of your small-to-mid-size tractor’s three-point hitch. This specific 16-inch center tube is built to Category 1 specifications, making it the right fit for tractors up to approximately 45 horsepower. This tube is where the adjustment happens, allowing you to correctly level or pitch an attached implement like a plow, tiller, or box blade. Having this genuine replacement tube ensures you can always achieve the precise length needed for optimal performance and safety when working your land.

Key Features of AgSmart Cat 1 Top Link Tube

Designed for Category 1 three-point hitches common on small farm and utility tractors

Constructed from mild steel to handle the stresses of common implement work

Tube measures 16 inches in length, providing a core for standard adjustment range

The thread size is 1-1/8 inches which is standard for Cat 1 mechanical top links

A necessary repair component when the original tube is damaged or seized

Pin holes are typically 3/4 inches, matching standard Category 1 drawpins

Allows for manual lengthening or shortening of the top link assembly

Zinc-plated finish on the threaded components provides rust protection

Additional Information

Brand: AgSmart

Product Type: Top Link Component

Model:

Product Use: Adjusting 3-Point Hitch Implements

Size:

Material: Mild Steel

Height: 2 inch (approximate outer diameter)

Length: 16 inch (center tube length)

Width: 1-1/8 inch (thread diameter)

When installing this top link tube, always apply a good quality anti-seize compound to the threads on both the male end and the tube itself before assembly. This is a critical step to prevent rust and corrosion from seizing the link, which is a common failure point. Always remember to use the correct size locking collar or jam nut to secure your adjustments once the implement is correctly positioned, preventing the link from changing length during operation. A properly maintained top link makes leveling your equipment much easier in the future.
